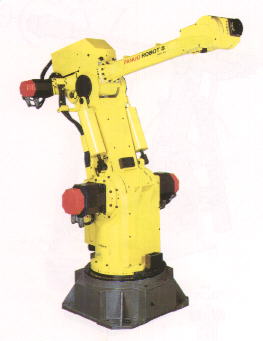

FANUC Robot S Model 300 ( was S Model 3c )
Industrial ROBOT for welding, handling deburring etc.
It features a 60 kg wrist load capacity and a large range of movement, and is ideal for high-speed positioning of heavy loads.
The S-300 also offers superior reliability and ease of maintenance.
Together with the newly developed FANUC SYSTEM R-MODEL G2 controller with digital servo, it is ready to contribute to Factory Automation now and on into the future.
A superbly rugged mechanical structure and outstanding rigidity have been achieved through the adoption of carefully selected mechanical components and a high-precision reducer system. Together they enable superior repeatability of +/-0.5 mm under various operating conditions.
A large range of movement has been secured by coupling the high-precision rotary reducer with the arm drive module.
The adoption of a fully electronic absolute positioning system eliminates the need for zero return operations after power on. This permits instant, automatic startups.
Each axis is equipped with a brake. In the event of malfunction or power failure, the robot position is automatically maintained.
The robot's mechanical system is equipped with mastering functions which keep the robot's coordinate system at a constant. Program compatibility is maintained even if another robot is substituted, and the coordinate system is precisely set for visual sensors or offline programming.
