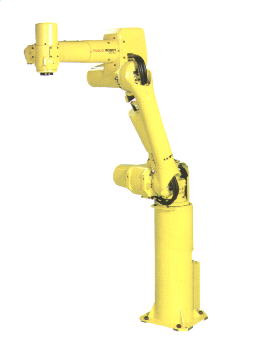

FANUC Robot S Model 5
Handling ROBOT for small parts featuring high cost performance
The mechanical unit construction is to have high-rigidity and easy-to-maintain.
Together with the newly developed R-G2 controller with the digital servo system, it contributes to the Factory Automation today and on into the future.
While offering an outstanding operating area, the S-5 features a remarkably lightweight mechanical unit weighing only 100kg.
Superlative mechanical rigidity has been attained by directly coupling the reducer with the output axis.
The adoption of the digital servo system has resulted in high-speed movement, shorter positioning time and improved path accuracy.
The incorporation of the fully electronic absolute detection system has elliminated the need for zero return operations after power on. The robot can therefore be started automatically even in work areas where it has a restricted range of movement.
The S-5 features a totally maintenance-free structure.
- The AC servo motor is enturely brushless, so brush-related maintenance requirements are illiminated.
- By directly coupling the reducer, it has been possible to illiminate intermediate gears, belts and chains which normally require maintenance.
- A unique rotary-axis cable treatment method ( patent pending ) has been adopted which dramatically extends the service life of the cables.
