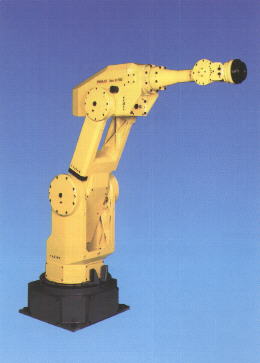

FANUC Robot S Model 700 ( In-line wrist )
New generation middle class multipurpose ROBOT servicable to the backside
The S-700 has a high-rigidity and ease of maintenance mechanism.
It can be used for various kind of applications handled with middle-weight workpieces.
A backside handling has been achieved with a dead zoneless expansive operating range. The ceiling installation can be realized with the specific balance structure.
High-rigidity and superior reliability have been achieved through the direct-coupled joint structure without belts nor key driving elements.
The cables and the motors are installed inside the mechanical unit, and the completely sealed grease-bath method is applied to the drive gears, which secured safer construction s against dust and water.
The motors do not extend outward on either side of the robot. Peripherals can therefore be installed directly next to the robot. Also the robot position is automatically maintained by the safety brakes, in the case of malfunctions or power failure.
A fully electronic absolute positioning system eliminates the need for zero return operation after power on, and enables automatic starts in any positions
The robot coordinate system is precisely set by the mastering fixture.
